dSPACE Environment Sensor Interface Unit

The dSPACE Environment Sensor Interface Unit feeds digital image data into camera ECUs to ease testing and development of ADAS and automated driving systems.

February 14, 2018
dSPACE
D Space Environment Sensor Interface Unit
Dspace 10055308

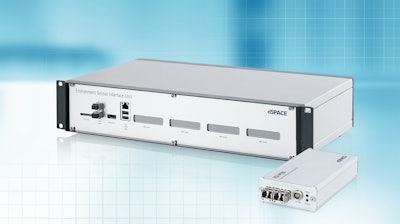

The dSPACE Environment Sensor Interface Unit feeds raw sensor image data to camera ECUs.

  • Supports time-correlated stimulation of a high number of individual sensors
  • Well suited for overcoming typical drawbacks during testing associated with the multiple components necessary for ADAS and autonomous driving systems
  • High-performance FPGA feeds raw sensor data to image processing ECUs in a synchronized manner
  • Typical scenarios for autonomous driving with a stereo camera, four surround view cameras and a driver's camera can be realized with a single unit
  • Flexible adaption of long- and short-range video interfaces
  • Provides image processing and manipulation
  • Prepared for mounting in HIL system (19-in. [48.3 cm] rack)
  • Modular system supports all common interface types such as GMSL, FDP-Link III, or CSI2 and is individually configured according to customer requirements
