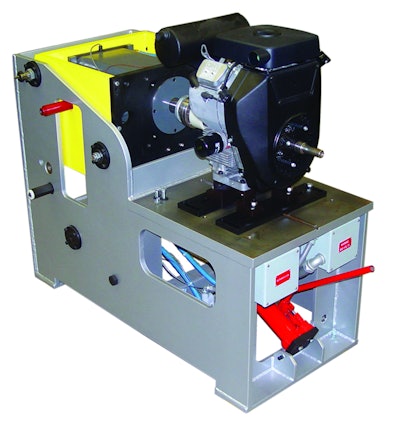

SAKOR Technologies, Inc., known for engine and powertrain system testing, announces the VersaDyne, a completely integrated, turn-key system for testing small 2-cycle and 4-cycle engines.
- AC motoring dynamometer uses Flux Vector technology for precise speed and torque control to test various performance characteristics on one system
- Power-efficient, regenerative design returns absorbed power to the plant mains for minimal heat rejection and little or no need for external cooling
- Motoring capability provides automatic engine starting and complete testing of transient engine loads
- Converts between horizontal and vertical orientations so horizontal-shaft and vertical-shaft engines can be tested on the same system
- DynoLAB PT Engine Test Cell Controller provides fully automated test cycle control in a Windows-based environment
- Graphical “drag and drop” interface allows for creation of automated test cycles without complex programming
- Modular, expandable I/O system provides complete data acquisition and control functionality in a single integrated package
- Available in sizes ranging from 5 to 30 kW
- Works with small outboard motors, motorcycles, ORV’s, tractors, lawn care tools, and generators
