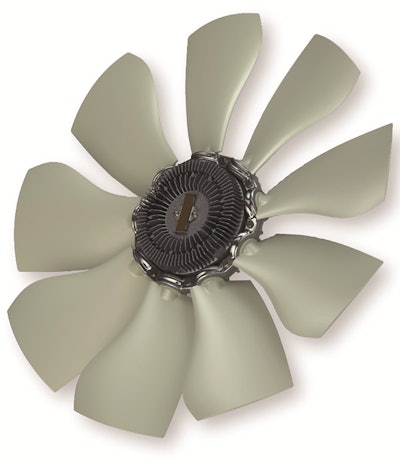

Multi-Wing PMAX3 Narrow-Depth Axial Fan

The Multi-Wing PMAX3 narrow-depth axial fan has minimal axial deflection and is available in diameters of 17.5-25 in.

MultiWing PMAX3Fan 5730ed2a09516
Mw Logo 250 585025dcec155

Multi-Wing introduces the PMAX3 narrow-depth axial fan, its latest precision airflow fan.

  • For applications with restricted space that require high static pressure
  • Features new blade root design
  • Features minimum axial deflection
  • Available in diameters from 17.5-25 in. (445-635 mm)
  • Axial depth is 3-4.5 in. (77-114 mm)
  • Pitch angles from 20-47.5 degrees in 2.5 degree increments
  • Available with 3-, 6- or 9-blade configurations
  • Blades are constructed of glass-reinforced polyamide (PAG), which has an operating temperature from -40-240 F (-40-115 C)
  • Hub is constructed of pressure-die-cast aluminum alloy
  • A 15.75 in. (400 mm) diameter fan has tip speeds of up to 426.51 ft./sec. (130 m/sec.)
  • Maximum-diameter model is capable of operating at 3,800 rpm
  • Compatible with MAHLE T13, T35 and competitive fan clutches
