FPT Cursor 9 CNG Engine

FPT's Cursor 9 CNG engine can be powered by natural gas in its compressed, liquefied or renewable form.

DSC05291 v2 57459888aa1b7
Fpt Logo Red Rgb

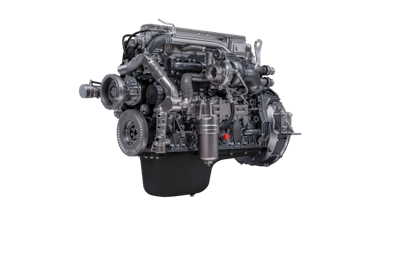

FPT Industrial introduces the 6-cylinder Cursor 9 CNG engine.

  • Based on the Cursor 9 diesel architecture
  • Offers power up to 400 hp (298.28 kW) at 2,000 rpm, and torque up to 1,700 Nm (1253.86 ft.-lbs.) at 1,200 rpm
  • Emissions output is lower than that required by Euro 6 emissions regulation
  • Provides 9 L diesel equivalent power in an 8.7 L package
  • Suited for applications such as heavy haulage, garbage collection, city and intercity transportation
  • Powered by natural gas in its compressed (CNG), liquefied (LNG) or renewable form (bio-methane)
  • CO2 emissions of natural gas are significantly less than diesel counterpart, and can be close to zero using bio-methane
  • Uses stoichiometric combustion to generate power
  • Relies on a simple three-way catalyst to comply with Euro 6, eliminating the need for exhaust gas recirculation (EGR) or selective catalytic reduction (SCR)
  • Features increased displacement, new multipoint fuel injectors and a new fuel rail to allow for higher flow rates
  • Modified cylinder head, characterized by intake ports with an optimized swirl angle, enables reduced fuel consumption
  • Ni-Resist cast-iron exhaust manifold and water-cooled wastegate turbocharger increase reliability
  • Use of new piston rings increase oil service intervals by 17% versus Cursor 8 CNG
  • Can be coupled to an automated robotized transmission to help increase operator comfort
