D18 Model Tier 4 Final

Doosan Infracore T4F engine models offer advanced environmentally-conscious technologies appealing to OEM’s, dealers and end-users for a wide range of equipment and applications.

March 17, 2014

Doosan Infracore Co., LTD

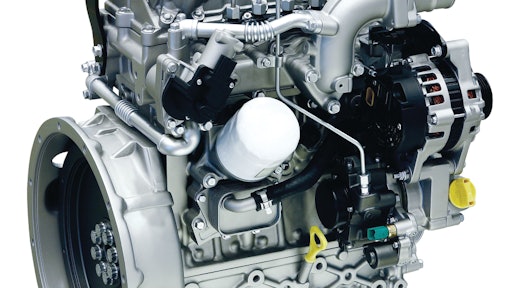

Doosan D18 Engine 1 11347898

Doosan developed its compact D18 Model engine to offer advanced environmentally-conscious technologies — specifically a non-diesel particulate filter (DPF) design — attractive to OEMs because they provide advantages dealers and end-user customers want.

In-line three cylinder configuration
Bore x Stroke: 90 x 94 mm
Displacement: 1,794 cc
Turbocharged and intercooled aspiration
Max. Power: 50 hp (37 kw) @ 2,800 rpm
Max. Torque: 165 Nm @ 1,600 rpm
DOC aftertreatment

Fill out the form below to request more information about D18 Model Tier 4 Final
