MAN D2862 LE13x Engine

The MAN D2862 LE13x engine, exhibited at CONEXPO 2017, has an output range of 588-816 kW and meets Tier 4 Final/Stage V emissions regulations.

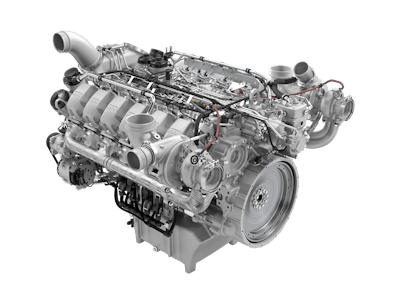

01 Man D2862 Le Off Road 58d3d72311331

MAN Engines' 12-cylinder D2862 LE13x engine is based on the most up-to-date engine technology which demonstrate significantly improved performance characteristics.

  • Applicable for use in heavy-duty construction machinery
  • Power output range from 588-816 kW (800-1,110 hp)
  • Available in variants 588, 650, 750 and 816 kW (800, 884, 1,020 and 1,110 hp)
  • Displacement of 24.24 L capable due to 28 mm (1.1 in.) cylinder bore with 157 mm (6.2 in.) stroke
  • Waste gate charging allows maximum torque of 3,700-5,000 Nm (2,729-3,688 ft.-lbs.) at low speeds (1,300-1,400 rpm)
  • Omission of exhaust gas recirculation results in lower heat dissipation from engine, enabling smaller radiator to be used
  • Provides space-saving installation by measuring 1,660 mm long x 1,333 mm wide x 1,391 mm high (65.4 in. x 52.5 in. x 54.8 in.)
  • Additional modular exhaust gas aftertreatment system with variable setup options for individual components enables use in wide range of applications
  • Meets Tier 4 Final and EU Stage V emissions standards without exhaust gas recirculation, purely via selective catalytic reduction (SCR-only)
