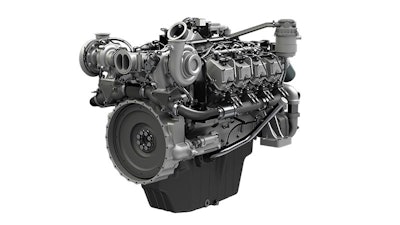

FPT V20 Engine

Introduced at CONEXPO 2017, the FPT V20 engine has a power output of 910 hp and maximum torque of 3,024 lbs.-ft.

Fpt 58c030ee69e6b

FPT introduces its V20, a powerful top-of-the-range 20 L engine.

  • Features 90 degree V8 (8 cylinder) architecture
  • Performs at maximum power of up to 910 hp at 1,800 rpm and maximum torque of up to 3,024 lbs.-ft. (4,100 Nm) at 1,500 rpm
  • Includes 2,200 bar Common Rail Injection system and ECU (Electronic Control Unit) for high system efficiency and low fluid consumption
  • Lean V8 design with no-EGR, as well as single-stage WG turbocharging and high resistance materials, guarantee system reliability
  • Power-to-weight ratio is 13% more than 12 cylinder competitors’ average, delivering high performance while preserving vehicle stability and reducing load on axles
  • Compact design, minimizing impact on vehicle dimensions and load capacity
  • Permits up to 2% of savings on fuel compared to 12-cylinder engines due to lower friction and smaller displacement
  • Cross-banks exhaust system design releases optimal turbochargers fluid-dynamics for maximum efficiency
  • Adopts one side serviceability layout: oil, fuel, and blow by filters are placed on the front side allowing easy access position from vehicle hood
  • All filters are remote-mountable on request to fit multiple application layouts
  • Single cylinder heads are designed and made in high-resistance nodular cast iron to guarantee higher performance with 220 bar PCP and easier maintenance operations
  • Includes HI-eSCR technology
  • New turbocharger layout with turbines outlet junction improves and simplifies ATS piping and performance
