Rapid Assembly Hose System

Parker's Parflex Division introduces a quick connect hose and fitting system for low pressure hydraulic and pneumatic systems.

Parker Rapid Assembly Hose System
Parker Logo Big 10933185

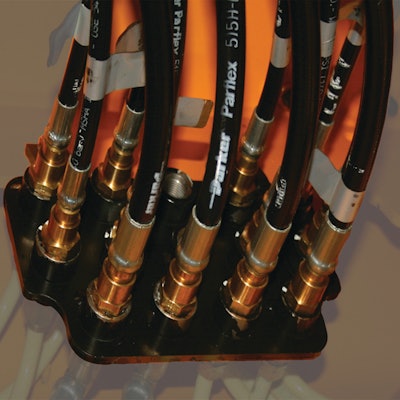

Parker Hannifin, Parflex Division, has developed a quick to connect hose and fitting system for low pressure hydraulic and pneumatic systems, known as the Rapid Assembly Hose system.

  • Consists of Parflex 515H hose and Parker RA (Rapid Assembly) quick connecting hose fittings and adapters
  • Improves assembly time, overall connector costs and system weight
  • Features light weight, fiber reinforced, low pressure thermoplastic construction with kink resistance
  • Hose has a 20% smaller diameter, 25% tighter bend radius and is five times lighter than comparable hoses
  • Brass RA quick connect fittings are compact and anti-corrosive
  • Connector design is very simple, durable and easy to install, eliminating need for wrenches or other tools
  • RA series fittings are not live swivels and care should be taken to insure that relative movement between adapter and hose fitting is eliminated
  • Sealing is achieved through use of petroleum and synthetic hydraulic oil resistant elastomeric o-rings
  • Well suited for routing through tight spaces while maintaining flexibility
  • Sizes range from 3/16 in. I.D. up to 1/2 in. I.D. in a single or multi-line assembly
