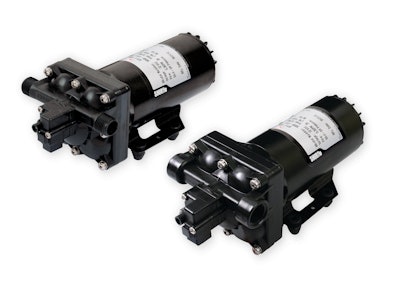

5059 Series SHURFLO Diaphragm Pump

Pentair has released the 5059 Series SHURFLO Diaphragm Pump which delivers flow rates up to 5 gpm.

Pentair 5000seriesdiaphrampump 10958180
Pentair 10932985

Pentair introduces the 5059 Series SHURFLO Diaphragm Pump, a highly durable automatic-demand pump designed for spraying and pumping herbicides, pesticides, liquid fertilizers and hard-to-handle fluids.

  • Delivers flow rates up to 5 gpm with pressures up to 60 psi and a maximum draw of 17 amps
  • Driven by a 12V, continuous-duty sealed motor
  • Features Santoprene diaphragm and Viton valves for durability, chemical resistance and maximum lifespan
  • Can be run dry without damage
  • Offers automatic thermal overload protection as well as self-priming capabilities up to 8 ft. and dry priming up to 6 vertical feet
  • Includes built-in pressure switch, set at 60 psi, to protect unit in event of dead-heading
  • Delivers 3.8 gpm when operating at a pressure of 40 psi with a current draw of 13 amps
  • Available in same footprint as other models in SHURFLO line, allowing users to upgrade to a higher performance pump in existing applications
