09 Series Cartridge Valves

Comatrol's 09 Series cartridge valves are designed for applications requiring minimal pressure loss.

Comatrol09series 10706349
Comatrol018 10714694

Comatrol introduces the 09 Series Cartridge Valves for proportional and on/off pilot control of clutches, brakes and directional control valves. The series includes two on/off solenoid valves and a proportional pressure reducing valve.

  • Designed for pilot applications requiring minimal pressure losses in the system
  • Combines 10 size cavity with 08 size tube/coil to optimize performance
  • 10 size cavity provides high flow capability with low pressure drop
  • 08 size tube/coil provides smaller package size and lower power consumption of coil
  • Optional inlet screen protects system from large particles

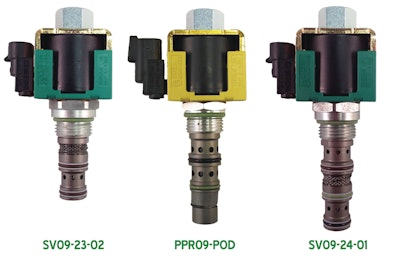

  • Solenoid valves offer choice of 2-position, 3-way (SV09-23-02) and 2-position, 4-way (SV09-24-01) schematics
  • Solenoid valves operate to pilot pressures of 100 bar (1,450 psi) and offer flow rate over 20 LPM (5.3 GPM)
  • Proportional pressure reducing/relieving valve (PPR09-POD) is pilot operated and normally open to drain so there is no actuator movement with zero current
  • PPR09-POD version provides precise electro-proportional control of clutch or directional valve when application needs proportional pilot control
  • Pressure reducing valve comes with reduced pressure settings of 20 bar (290 psi) and 25 bar (360 psi), with flow capability exceeding 25 LPM (7.0 GPM)
