Monoblock Valves

Cv112 D68uupodmiuca
Logo Hydraulic Systems 2bqff89hfr7jm

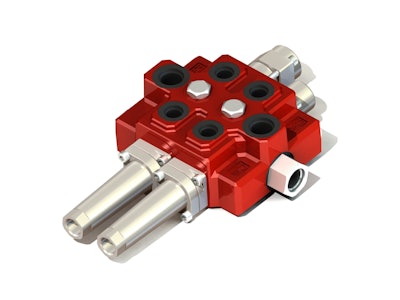

Nimco Inc. monoblock valves feature a wide range of section and load options to choose.

  • CV110 ranges from one to six sections; features built-in check valves for each section for full load control at simultaneous spool operation; flow range 50 lpm (13 gpm); pressure of 320 bar (4,600 psi); port size BSP 3/8 or SAE 6
  • CV126 is specifically designed for backhoe applications with built-in load holding check valves for each section and secondary valves on each port available; flow range 50 lpm (13 gpm); pressure of 320 bar (4,600 psi); port size BSP 3/8 or SAE 6
  • CV400 ranges from one to four sections for open center system; flow range 80 lpm (21 gpm); pressure of 320 bar (4,600 psi); port size BSP ½ or SAE 10
  • CV300 ranges from one to six sections with option of service port valves for each port; flow range of 140 lpm (37 gpm); pressure of 320 bar (4,600 psi); port size BSP 3/4 or SAE 12
  • CV601 single section monoblock valve can be equipped with two main relief valves to handle additional flow; flow range of 180 lpm (47 gpm); pressure of 320 bar (4,600 psi); port size BSP 3/4 or SAE 12



Request More Information
Fill out the form below to request more information about Monoblock Valves
