HydraForce provides engineered circuits featuring optimal flow and directional control valve combinations with INTEGR8. The aim of these circuit configurations is to save engineering time and take some of the guesswork out of specifying the most common hydraulic control schemes.
- Features more than 40 directional and flow control options that are easily integrated into a hydraulic circuit using i-Design 4.0 custom manifold design software

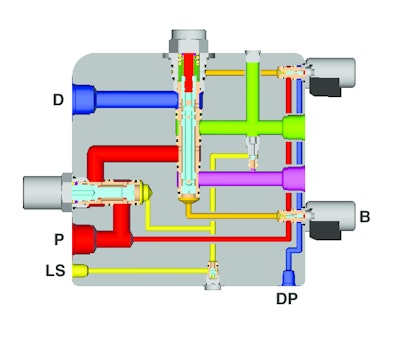

- Each option consists of optimally paired hydraulic cartridge valves packaged in a common hydraulic control scheme; valves are compatibly sized and configured to handle several ranges of hydraulic flow rates and operating pressures
- Each option is depicted with ISO graphic symbols in a hydraulic schematic that can be dragged and dropped to start a control circuit diagram in i-Design 4.0 manifold design software; built-in library accelerates the design engineering process
- Flow control options include direct-acting, normally closed and normally open control schemes in flow ranges from 10 to 22 lpm (3 to 6 gpm); 37 to 70 lpm (10 to 18 gpm) and 55 to 106 lpm (14 to 28 gpm)
- Operating pressures range from 207 bar (3,000 psi) to 241 bar (3,500 psi)
- Directional control options include a choice of direct-acting or pilot-operated controls for operating pressures up to 240 bar (3,500 psi)
- Direct-acting options are available in flow ranges from 11 to 21 lpm (3 to 6 gpm)
- Pilot-operated options are offered in flow ranges from 32 to 83 lpm (8 to 22 gpm)
- Hydraulic systems can be customized with additional function control features, all within a machine-specific, customer-specified housing construction
- Performance can be designed to incorporate a variety of features, including flow-sharing, compensation, pre-compensation, port pressure protection and more
- Each INTEGR8 control option has been fully tested to verify functionality and each cartridge valve carries a five-year warranty
