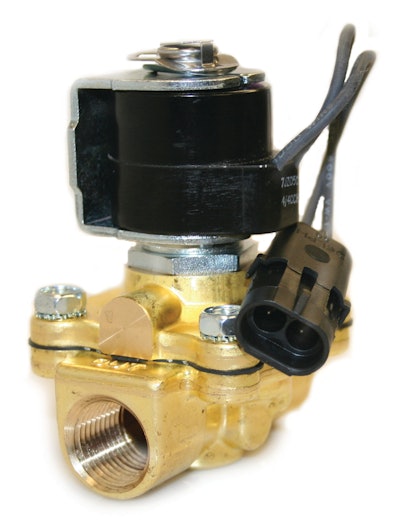

The Industrial Climate Control Solution from Parker Hannifin's Fluid Control Division offers an on/off valve with terminations that plug into trucks’ auxiliary equipment to regulate heating and cooling systems.
- Extends life of engine by eliminating the need for idling
- Two-way normally closed or normally open design
- Available with an orifice diameter of 1/2 in. or larger and a process connection of 1/2 in. NPT
- Operates with a Cv factor of 4.0 or better
- Features bubble-tight internal and external leakage
- Constructed of brass, it is assembled with FKM and fluorocarbon seal material
- Electrical specifications include a continuous-duty, Class H molded coil enclosure with an open-frame yoke and electrical leads
- Electrical capabilities allow for 12V of direct current and 11 to 16 watts of power consumption, depending on the valve type
- Electrical connectors are available upon request
- Withstands a maximum pressure differential of 25 psi or more and a maximum ambient temperature of 150 F
- Offers connectors on leads, barb fittings in ports and a mounting bracket, upon request
