Side Exit Check Valve

September 30, 2009
The Lee Company
Sideexitcheckvalve 10058541

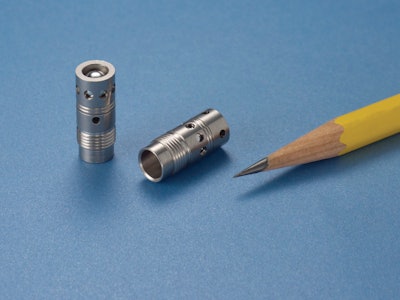

The Lee IMH 832 Series Side Exit Chek valve provides low pressure loss.

  • 8 mm in diameter
  • Side exit design which will flow in excess of 6 gpm of water at 100 psid
  • Low leakage
  • Easy installation
  • Robust stainless steel construction
