Directional Ball Seated Valves

June 1, 2009
HAWE Hydraulik
D7300 2 rgb 100x100 592db458213fd
Logo Short 3x 957 300dpi 57029de3cfd36

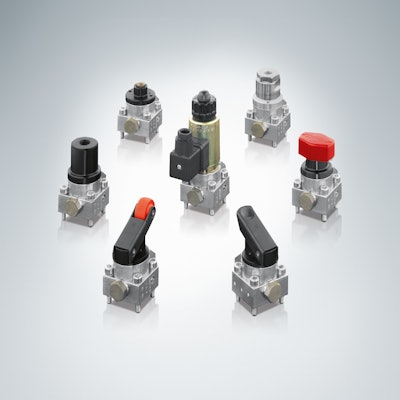

HAWE Hydraulics introduces the newest member of directional ball seated valves, known for their ability to stop flow without leakage.

  • Commonly used for structural engineering works
  • Size 22 valves
  • Made of steel
  • Pressure ranges up to 700 bar (10,150 psi)
  • Mechanically moved from operating element to switch position by the bell-crank lever and tappet
  • Available in solenoid, pilot, mechanical or manual actuations
  • Can be delivered with 2/2-, 3/2- and 4 position 3-way directional functions
