ML-18 Control Valves

Rexroth's ML-18 control valves provide energy efficiency for Tier 4 engines.

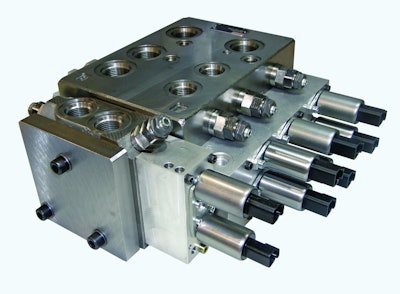

Rexroth Ml18 Controlvalves 10253050
Rexroth Logo 4 C

With the ML-18 Rexroth provides energy efficient pressure compensated load-sensing control valves. The ML-18 design was focused on reducing power consumption on new TIER 4 applications such as skid steers, small wheel loaders and material handlers.

  • Reduces pressure drops up to 50% in applications requiring up to 40 gpm (151 lpm) at 4000 psi (276 bar)
  • Monoblock design reduces interface restrictions between sections
  • Dedicated tank coring provides highest flow section
  • Backpressure valving forces flow regenerating
  • Optimizes internal flow passages for optimal flow geometry, while minimizing the overall size
  • Architecture enables choice of electro-hydraulic or pilot operation for spool modulation, for flexibility to meet control system of choice
  • Allows addition of Rexroth M4 series sectional valves to end of mono-block for more flexibility
