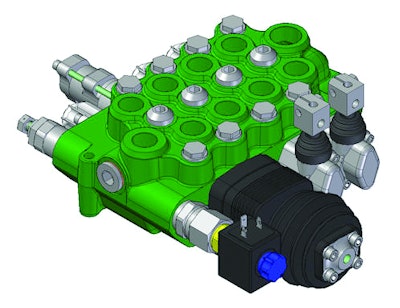

VDM8 - Directional Control Valves: Monoblock types - from Salami Hydraulics.
- Cast iron monoblock construction from one to five working sections
- Parallel circuit, load check valve protection on each section
- Possibility of power beyond configuration
- Possibility of venting valve
- Spool construction in steel, hardened and chromium-plated to obtain a higher surface hardness and a better corrosion resistance
- Several types of spools available, including double, single acting, spool motor, float position and regenerative position
- Interchangeability of the spools
- Available spool with overcenter valve built in and spool with hydraulic kick-out built in
- Minimum tolerance between the spools and the body to obtain a minimum internal leakage
- Possibility of auxiliary valve either on port A or B or on both
- Several spool control devices and spool positioning devices
