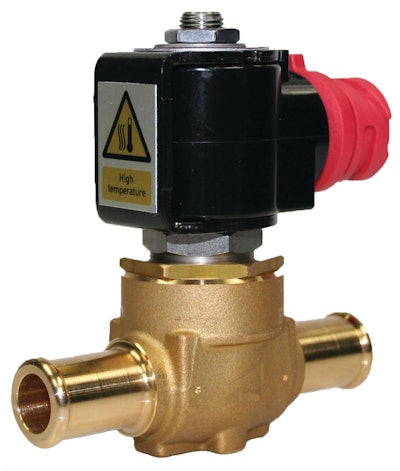

The Fluid Control Division of Parker Hannifin Corporation now offers its glycol control valves in a completely forged body design to the heavy-duty vehicle market. The valve setup features a one-piece valve body with machined hose end connections to eliminate two potential leak points.
- Two-way normally closed design
- Can be incorporated into vehicle’s heating and cooling system to regulate accessory equipment
- Well suited for applications where control of glycol or other water-based media is required
- Constructed with brass bodies and EPDM seals
- Available in 12 and 24V DC
- Operates in the pressure range from 3 to 44 PSI (0.2 to 3 bar)
- Works in ambient temperature range of -40 F to 180 F (-40 to 82 C), and media temperature range from -40 F to 230 F (-40 to 110 C)
- Watertight electrical connection is IP67 and IP6K9K rated with the proper mating connectors installed
