RFDE Reversing Fan Drive HICs

Comatrol introduced its RFDE Reversing Fan Drive HICs at bauma China 2012.

December 3, 2012
Comatrol
Comatrol Fandrivehic 10837237
Comatrol018 10714694

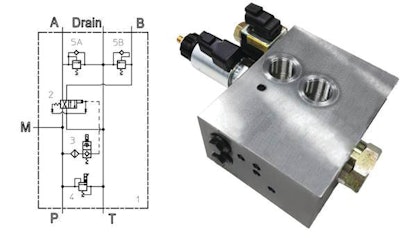

At bauma China 2012 Comatrol introduced the RFDE fan drive HICs designed to efficiently control the speed and reversing functions of hydraulic fan systems.

  • Slimmer design fits around tight space constraints in engine compartment
  • Provides 79% reduction in pressure drop for RFDE-40 version, from 24 bar (348 psi) to 5 bar (73 psi) at 40 LPM (10.6 GPM) to improve efficiency
  • Overall size reduced by 30%
  • RFDE-80 version has a 60% reduction in pressure drop
  • Available in both PRV (open circuit gear system) and 000 (variable piston pump system) designs
Request More Information
Fill out the form below to request more information about RFDE Reversing Fan Drive HICs
