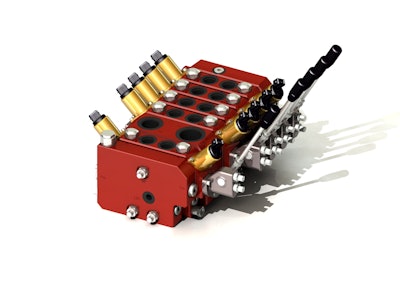

Load sensing valves from Nimco Inc. include CV110LS, CV550LS and CV2000LS.

  • CV110LS monoblock load sensing valve ranges from one to six sections; built in check valves for each section for full load control at simultaneous spool operation; flow range 50 lpm (13 gpm); pressure of 320 bar (4,600 psi); port size BSP 3/8 or SAE 6
  • CV550LS bankable load sensing valve with up to 10 sections; mid inlets and off loading valve options available; flow range 90 lpm (24 gpm); pressure of 320 bar (4,600 psi); port size BSP ½ or SAE 8
  • CV2000LS bankable post-compensated load sensing valves can be equipped with a range of different inlet modules for fixed or variable pumps, in standard or high flow versions; port specific LS-pressure limiters on each section, antishock and anti cavitation valves; flow range of 125 lpm (33 gpm); pressure of 320 bar (4,600 psi); port size BSP ½ or SAE 10
