TLX Technologies Discrete Proportional Pilot Valve

TLX Technologies' Discrete Proportional Pilot Valve offers precise control for up to four discrete positions.

August 30, 2019
TLX Technologies, LLC

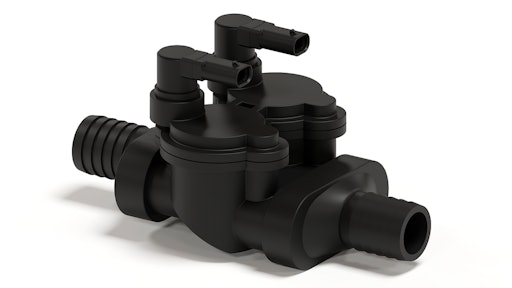

Discrete Proportional Pilot Valve Tlx Technologies
Tlx Logo 4 C

TLX Technologies has designed the Discrete Proportional Pilot Valve (DPPV) for fluid control in commercial vehicle and off-highway applications.

  • Zero hysteresis by design
  • Precise control for up to four discrete positions
  • Requires zero steady-state power
  • Designed for high flow applications
  • Only +/-12V needed for flow change
  • Customizable flow characteristics
  • Scalable for your application requirements
Request More Information
Fill out the form below to request more information about TLX Technologies Discrete Proportional Pilot Valve
