Bucher Hydraulics LVS Series Proportional Directional Control Valves

Bucher Hydraulics' LVS Series Proportional Directional Control Valves provides a nominal flow rate up to 180 l/min and pressure ranges up to 350 bar.

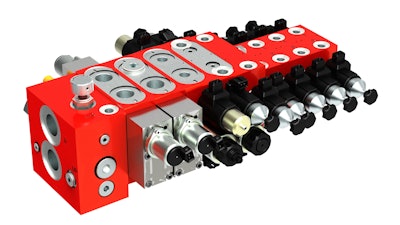

LVS directional valve system with SVH directional seat valves.
LVS directional valve system with SVH directional seat valves.
Bh Logo 300dpi

To meet existing and future requirements of agricultural machinery, Bucher Hydraulics has developed new functions for the LVS Series of proportional directional control valves.

  • Fast switching and compact design
  • Delivers higher energy efficiency, reduced installation costs and lower pressure losses in towed and self-propelled machines
  • Nominal flow rate up to 180 l/min (47.6 gpm) and pressure ranges up to 350 bar (5,076.3 psi)
  • Features two-stage valves with electrohydraulic operation, direct-operated solenoid valves and seat-valve combinations
  • Facilitates application-oriented solutions that meet increasing demands and growing functional segmentation
  • Up to 35 functions for controlling highly complex machines can be integrated
  • Additional components available for integration into modular control block system: valves for simple ON/OFF actuator functions requiring only low flow rates in spool or seat versions
  • Large oil galleries reduce pressure losses, increasing energy efficiency due to reduced diesel fuel consumption
  • Split-spool technology enables wide range of functions such as dual-flow control functions, lift/lower module in flow/return or return/return
  • Dual-flow control feature saves installation space and weight, and is suitable for pressure-independent, parallel operation of two single-acting motor drives
  • Highly dynamic valves accurately implement control signals even at high command frequency with signal durations of 10 milliseconds
  • Flow and return function corresponds to adjustable pressure support, in that the flow and return spools can be actuated and positioned independently of each other
  • Varying the ratio of the flow and return openings creates any required pressure at actuator outlet

See the LVS Series valves at IFPE 2020 at booth S82119. And find more news and product launches on our dedicated IFPE & CONEXPO channel.
