HYDAC HPK06 Series Piloted Directional Flow Control Valves

HYDAC's HPK06 Series valves feature a five-port pilot operated spool design and pressure up to 5,000 psi.

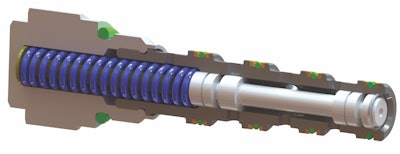

Hydac Hpk06 Se Valve
Hydac 10725188

HYDAC introduces the HPK06 series of piloted directional flow control valves.

  • Screw-in cartridge, hydraulically piloted, 3-way, 2-position, spool type, direct acting design
  • Provides pressure of 5,000 psi (344.7 bar) and flow rate of 3.5 gpm (13.3 lpm)
  • Features HYDAC FC06-5 cavity
  • Five-port pilot operated spool valve
  • Three work ports, separate pilot and vent ports with open transition
  • Well suited for handling small priority flow control needs
  • Use to switch and vent pilot pressure controls
  • Widely adaptable for use as a logic element
  • Variety of spring bias options available
  • Full pressure may be applied to all ports
  • Offers designers great flexibility
  • Spring options from 30-300 psi (2.07-20.7 bar)
  • Allows bidirectional flow
  • Load sensed priority flow control, as part of a fully adjustable pressure compensated flow control
  • Advanced ride control systems
