Eaton SLV20 Load-Sensing Proportional Directional Valve

Eaton's SLV20 valve achieves meter-out or meter-in control through logic elements, enabling flow sharing and flow prioritization in the same valve bank.

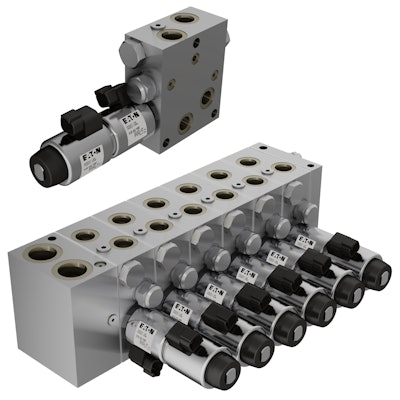

Slv20 Full Valve Bank And Individual Section
Eaton
Logo Eaton 10933210

Power management company Eaton announces the launch of its SLV20 load-sensing proportional directional valve, a flexible priority-flow-sharing solution for mini and micro machinery.

  • Offers greater flexibility and control as well as space and weight savings compared to traditional cast iron control valves for low-flow applications
  • Brings priority flow sharing to low-flow machinery with the versatility and serviceability of screw-in cartridge valves
  • Designed in sections to enable stacking of multiple functions
  • Utilizes Eaton’s new ESV9 four-way three-position proportional solenoid cartridge valve in a hydraulic integrated circuit concept
  • Meter-out or meter-in control is achieved through logic elements, which enables flow sharing and flow prioritization in the same valve bank
  • Sections are manufactured from aluminum drawn bar, which enables production of small batches of individual sections with added functions
  • Can include pilot-operated check valves, counterbalance valves or other bespoke functions that an application requires, reducing need for remotely mounted ancillary valves
  • Aluminum sections weigh significantly less than traditional cast iron sections, which can lead to efficiency gains and, in some cases, increased load-carrying capability and battery life
  • Patent-pending multifunction meter-out compensator reduces section size by 40%, saving space on the machine
  • Flows of up to 60 lpm (16 gpm) at the inlet and 30 lpm (8 gpm) at the work port
  • For mini and micro machinery platforms across a variety of industries, including construction, agriculture, material handling and vocational vehicles, as well as auxiliary/accessory control on larger machines
