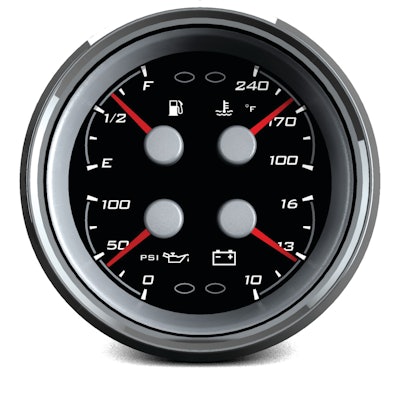

3 in. NexSysLink 4-in-1 Multigauge Cluster

Beede Instruments introduces its NexSysLink Multigauge Cluster which offers readouts of four types of vehicle data, including fuel and engine oil pressure, in one instrument.

Beedeinstruments 4in1instrumen 10734497
Logo Badge Oval 6 3 cymk 55c2801e646ed

Beede Instruments introduces its 3 in. 4-In-1 Multigauge Cluster, part of the company's NexSysLink CAN Instruments Product Family.

  • Available in either slave node instrument (SNI) or stand-alone configurations
  • Well suited for vehicles with limited dash or panel space
  • Reads data from any NexSysLink Master Node Instrument to drive analog pointers and activate LED alert indicators
  • Includes environmentally sealed connectors
  • Stand-alone configuration directly reads CAN compliant messages and/or analog sender data
  • Displays fuel level, engine coolant temperature, engine oil pressure and voltmeter
  • Custom configurations and features available such as dial face graphics and colors, domed or flat glass, illumination color or company logo
  • Helps reduce installation costs and simplifies wiring
  • Uses advanced stepper motor technology
  • Stand-Alone product factory configurable to read SAE J1939 or NMEA 2000 CAN protocols
