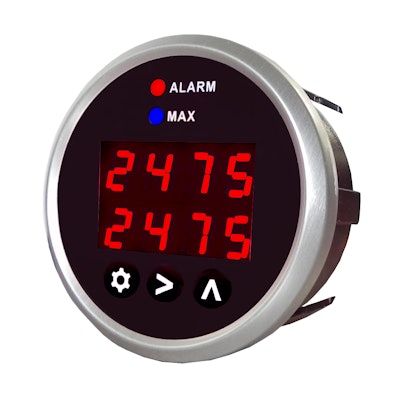

The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, has expanded its line of temperature measurement and control instrumentation with the addition of the model DPG-SD-2 Series dual channel digital Type K thermocouple temperature gauge.
- Microprocessor based design
- Packaged in a compact 52 mm O.D. round housing with an IP65 rated face for use in harsh industrial environments
- Dual line bright red LED numeric display is easy to read, even at a distance
- Display flashes and an internal 2 Amp relay circuit is activated during high temperature alarm conditions
- Programming is quick and easy using front panel membrane keypad
- Temperature units field selectable for degress Celsius or Farenheit
- User adjustable HI alarm set point
- Includes max peak temperature recall function
- Powered by 9 to 32V DC
- Display range is 32 to 2,282 F (0 to 1,250 C)
- Operating temperature range is -40 to 85 C
Request More Information
Fill out the form below to request more information about The Sensor Connection DPG-SD-2 Series Compact Round Dual Channel Digital Temperature Gauge
