Continental VDO SingleViu Instrument Gauges

Continental's VDO SingleViu instrument series features dual input allowing operation with analog signals and digitally with CANbus.

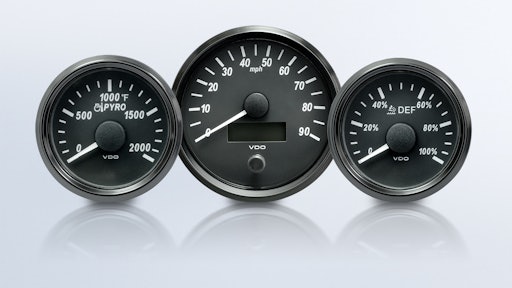

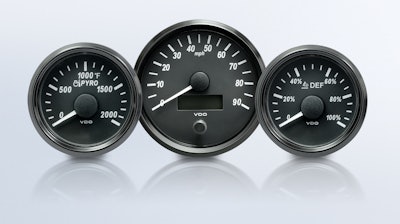

Vdo Single Viu Family
Continental Vdo Tagline 10947662

The Commercial Vehicles & Aftermarket business unit of Continental has introduced the VDO SingleViu instrument series, a line of robust and highly versatile round instrumentation.

  • For use in on-highway and off-highway applications including agricultural, mining, and stationary power applications
  • Features dual input allowing operation with analog signals and digitally with CANbus
  • Provides all functions of previous VDO Vision, ViewLine, and CANcockpit instrument lines
  • Available in 74 variants for original equipment, retrofit, or service replacement
  • Easy to use
  • Provides user interface via LCD display on speedometers and tachometers
  • Includes 2-1/16 in. (52 mm) diameter gauges for temperature, fuel, pressure, tachometer, DEF, voltage, amperage, and hourmeter
  • Speedometers and tachometers are also offered in 3-3/8 in. (80/85 mm) and 4 in. (100 mm) diameters
  • Accepts input from digital CANbus connection (CAN SAE J1939) and commercially available analog sensors
  • Features adaptable sensor curve or adaptable pulse count
  • Can be configured with SingleViu ConfigTool or LCD screen (speedometers and tachometers)
  • Electrical connection uses watertight Molex MX150 connectors
  • Designed to perform in wide range of weather and environmental conditions
  • Includes double-glazed and shock-resistant mineral glass to prevent fogging and damage under harsh conditions
  • Housings are flame-resistant environmentally sealed to class IP67
  • Voltage range is from 8-32V
  • Operating temperature range is -40-176 F (-40-80 C)
  • Provides exceptional readability, featuring a 240 degree display angle and RGB LED background illumination for dial and display
  • Anti-reflective coating is applied to lens to help maximize readability
  • 80/85 and 100 mm gauges include internal pushbuttons that can control additional information displayed in operating menu
  • Up to five tell-tales can be added to dial face, and both bezels and dials can be adapted to meet specific customer needs
