Sensor Connection DPG-SD-1 Series Digital Temperature Gauge

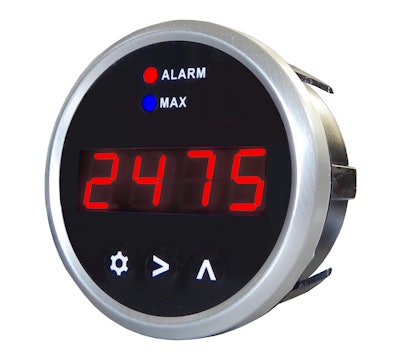

The DPG-SD-1 Series digital temperature gauge from The Sensor Connection features a bright red LED numeric display for easy visibility.

SensorConnection DPGSDSeriesDigitalTemperatureGauge 5641092f0b9c9
Thesensorconnection 10056444

The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, introduced the DPG-SD-1 Series digital Type K thermocouple temperature gauge.

  • Microprocessor-based design
  • Packaged in a compact 52 mm O.D. round housing with an IP65 rated face suited for use in harsh industrial environments
  • Bright red LED numeric display is easy to read, even at a distance
  • Display flashes and internal 2 Amp relay circuit is activated during high temperature alarm conditions
  • Programming is quick and easy using front panel membrane keypad
  • Temperature units are field selectable for degrees C or F
  • Includes Max Peak Temperature recall function
  • Powered by 9 to 32V DC
  • Display range is from 32 to 2,282 F (0 to 1,250 C)
  • Operating temperature range is -40 to 85 C
  • Case size is 52 mm O.D. x 38 mm deep
