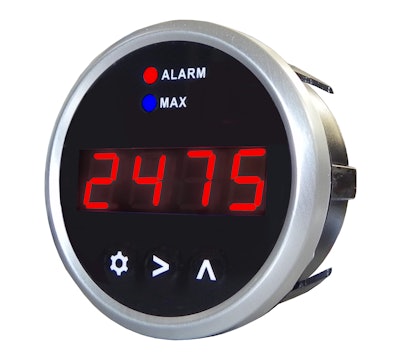

The Sensor Connection, a division of Harold G. Schaevitz Industries LLC, has expanded its line of temperature measurement and control instrumentation with the addition of the model DPG-SD-1 Series digital Type K thermocouple temperature gauge.
- Microprocessor-based design
- Packaged in a compact 52 mm O.D. round housing with an IP65 rated face well suited for use in harsh industrial environments
- Bright red LED numeric display is easy to read, even at a distance
- Display flashes and an internal 2 Amp relay circuit is activated during high-temperature alarm conditions
- Programming is quick and easy using front panel membrane keypad
- Temperature units field selectable for degrees Celsius or Fahrenheit
- Includes a maximum peak temperature recall function
- Powered by 9 to 32V DC
- Display Range is 32 to 2,282 F (0 to 1,250 C)
- Features operating temperature of -40 to 85 C
- Case measures 52 mm O.D. x 38 mm deep
