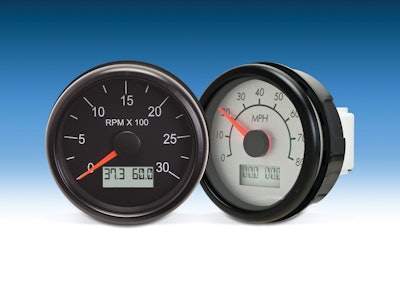

C-COM 3AD CAN Communication Analog Gauge

AMETEK introduces its C-COM 3AD analog gauge which can be directly connected to CAN databuses.

Ametek Ccom3adcancommunicatora 11148865

The C-COM 3AD (CAN-Communicator 3-inch Analog Gauge with Display) is the most recent addition to AMETEK Vehicular Instrumentation Systems’ Next Generation Instrumentation system.

  • Stand-alone gauge that can satisfy the instrumentation requirements for a wide range of vehicle platforms
  • Features modular 3 in. design
  • Can be connected directly to an SAE J1939 (CAN) databus
  • Accepts pulsed input or NMEA-0183 GPS received on USB input
  • Multi-function, backlit, 13-segment, seven-digit alphanumeric liquid crystal display provides vehicle information including odometer, hourmeter, tachometer and coolant temperature
  • Decals can be customized or chosen from a wide variety of standard decals
  • Adding optional external buttons expands menu system to include additional vehicle data, two resettable trip mileage and hours functions, diagnostic fault codes and warning messages
  • As a GPS speedometer, can monitor vehicle speed without wheel or drivetrain sensors
  • Two optional dead-fronted LED telltale indicators can be customized per application and controlled by switched inputs or J1939 databus
  • Sealed to IP67 specifications and designed to withstand harsh conditions typical of off-road environments
  • Meets all SAE J1455 and J113 requirements for vehicular instrumentation
  • Operates on 9 to 32V DC
  • Includes multi-option inputs than can be used for resistive, analog, pulsed or USB inputs
