PDM360 NG Dialogue Module Display

ifm introduces the PDM360 NG Dialog Module for visual display of vehicle operations.

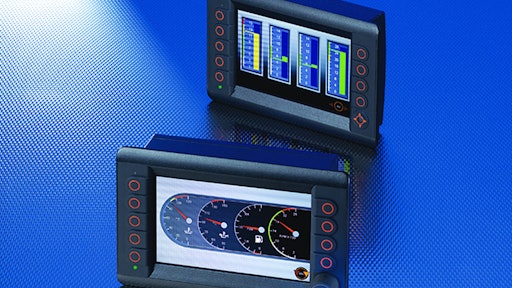

Pdm360ngprint 10258435

ifm efector inc., a manufacturer of control solutions for mobile vehicles, introduces the ecomat Mobile PDM360 Dialog Module that provides a 7“ full-color visual display of machine operations and system messages.

  • Scratch-resistant for durability
  • Features resolution of 800 x 480 pixels with aspect ratio of 15.9
  • Displays color depth of 18 bits
  • Nine backlit function keys offer tactile feedback
  • Holds one gigabyte of internal mass storage and 128 megabytes of data memory
  • Includes a 32-bit controller and four CAN interfaces to ISO 11898 that support CANopen and SAEJ1939 protocols
  • Fully-sealed diecast aluminum housing protects electronics and offers NEMA rating of IP67
  • Integrated M12 connectors provide quick connection for supply, inputs and outputs, and communication
  • Enables readability in direct sunlight and mounts inside cab or on side of vehicle
  • Four CAN interfaces to ISO 11898 exchange data with a connected controller, decentralized input/output modules or engine controller
  • Integrated USB 2.0 interfaces provide easy data exchange
  • Embedded Linux operating system and integrated 32-bit controller enable visualization of high-resolution graphics
  • Programmable to IEC 61131-3 with CoDeSys software that supports all common CoDeSys programming languages
  • Structured function libraries are available for communication and special unit functions
  • Available with an encoder or rocker switch
