Series 84 PCB Illuminated Pushbuttons

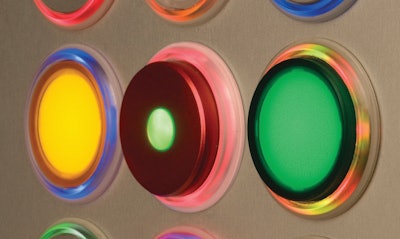

EAO Corporation introduces its Series 84 PCB illuminated pushbuttons, offering multicolor "halo" illumination.

Eaoseries84pcbilluminated 10343720

EAO Corporation of Milford, CT, a global supplier of Human Machine Interface (HMI) Systems and Components, announces the Series 84 PCB, bringing multicolor “halo” illumination capabilities to design engineers working on HMI Systems and control panels.

  • Offers range of 22.5 mm, PCB-mounted pushbuttons and indicators
  • Allows quick and easy programming to change color, pulse, flash, and illuminate at edge, creating a variety of dynamic effects
  • Enables creation of exciting, engaging, animated and intuitively easy-to-use control panels of any size
  • Utilizes 10 different SMD LEDs to produce customer-specific illumination combinations
  • Selection of eight outer ring LEDs to produce a “halo” and an additional bi-color LED for center
  • Combines with other electronics for use alongside touchscreens and displays to emphasize primary or additional controls
  • Transparent actuator is mounted on PCB using a flange with snap-on connector
  • Choice of flat or raised, plastic or aluminium lenses available
  • Quickly mounts in a 022.5 mm opening
  • Offers cost savings in end user applications since several functions can be combined into one switch, minimizing panel space and need for multiple components
