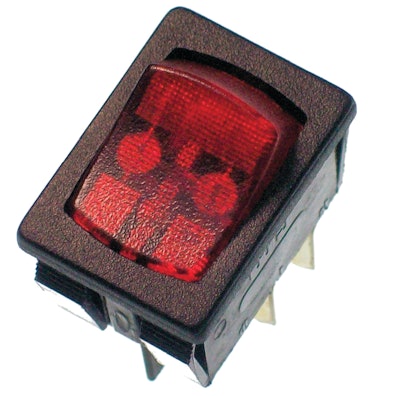

GRL-4011B-0000 Miniature Rocker Switch

The CW Industries GRL-4011B-0000 miniature rocker switch is LED illuminated and includes momentary functionality for applications requiring a spring return.

June 16, 2014

Cwindustries Grl4011bmomentary 11525767

CW Industries introduces the GRL-4011B-0000 switch, an LED illuminated miniature rocker switch in a momentary function for users with applications requiring a spring return.

Rated at 8 Amps, 14V DC
Features an (ON) – OFF function in a SPST circuit
Mounts into a panel opening of 0.756 in. x 0.508 in. requiring no mounting hardware and has standard 0.187 in. terminals
Standard actuator is made of red polycarbonate and the housing is made of black nylon
Wide range of options are available including color, terminal type -0.110 in. and polarizing means for switch mounting orientation
LED lamp is configured for direct application to 14V DC at 100,000 hours
Features self-cleaning contacts and is RoHS compliant

Fill out the form below to request more information about GRL-4011B-0000 Miniature Rocker Switch
