13000 Series Sealed Pushbutton Switches

APEM's 13000 Series sealed pushbutton switches include IP67 sealing for protection against water and dust in harsh operating environments.

APEM 13000SeriesPushbutton 5506fd23a818f
Logo Apem 10933224

APEM Inc. introduces its 13000 Series of sealed, momentary pushbutton switches designed for high performance applications in material handling markets.

  • Well suited for applications that require robust construction and reliability
  • Can be used for wireless remote controls and hand-held crane controls
  • Features low, behind-the-panel profile and anodized actuator
  • Includes heavy-duty double shell casing
  • Available in multiple colors
  • Push/pull switch maintains down position when activated and an upward pull force to de-activate, requiring approximately 5 lbs. of force in both directions
  • Features gold-plated, solid silver contacts
  • Fully sealed to IP67 with a state-of-the-art O-ring, sealing washer and epoxy-sealed terminals, protecting against water and dust

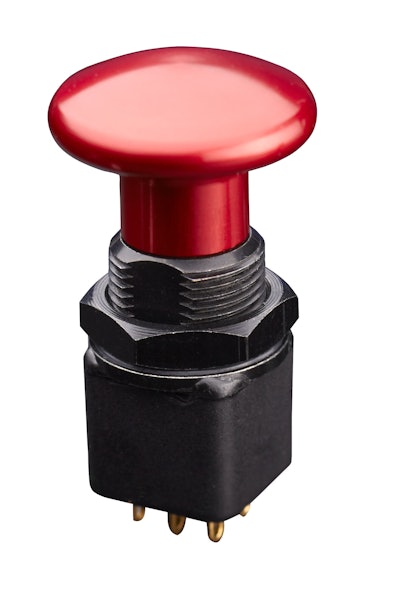

  • Bushing and hardware are available in black chrome-plated with the actuator dome in red anodized aluminum
  • Panel seals withstand 1 bar pressure and remain sealed even when the switch is operated
  • Reinforced sealing is also available
  • Low profile construction makes it suited for applications where behind-the-panel space is limited
  • Switch contacts are rated for low level switching and for resistive loads of up to 4 Amps at 24V DC
