Spicer Model 990 Suspension Steer Axle

Dana introduced its Spicer Model 990 suspension steer axle, capable of on-road travel speeds up to 60 km/h with a lower-rpm engine, at Agritechnica 2015.

Dana Spicer Model 990 Axle 5649e562bd8b1
Adiam 5 10948696

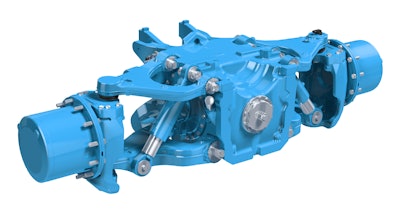

Dana Holding Corporation has introduced the Spicer Model 990 suspension steer axle for high-horsepower tractors.

  • For agricultural tractors from 285 to 370 kW (380 to 500 hp) in continuous use.
  • Independent front suspension offers isolation from body vibration and provides improved vehicle control, operator comfort, traction and handling characteristics for safer operation, especially at on-road speeds
  • Designed for integration into vehicle’s frame
  • Reduces complexity and simplifies final assembly on OEM production line
  • Central housing integrates pneumatically actuated multi-disc wet brakes and 100% differential lock capability, offering better traction at higher speeds with improved comfort
  • Housing features front three-point hitch and a power take-off
  • Capable of on-road travel up to 60 km/h (37 mph) with a lower-rpm engine
  • Includes anti-lock braking system (ABS) and central tire inflation system (CTIS)
