ContiTech Intelligent Air Springs

New sensor-controlled air springs enable contactless measurement of exact positions

Conti Tech Pp Intelligente Luftfeder 5900d4769e926
Contitech Logo 11713 11243825

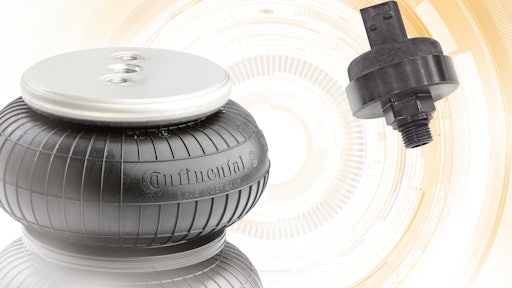

ContiTech air springs are now intelligent. Equipped with Continental sensor technology, the height of the air springs can now be adjusted electronically, the internal pressure monitored and the internal temperature measured.

  • Ultrasonic height and pressure sensor (UHPS) detects changes in height within the intelligent air spring using a pressure and temperature-corrected ultrasonic run-time measurement procedure, at a resolution of +/- 1 millimeters in a measure range of up to 500 millimeters
  • Can be used as a pneumatic element in systems, machines and industrial vehicles
  • Digital air springs do not require mechanical control components, which are prone to wear
  • As soon as application conditions change, such as a difference in height due to loading or uneven surfaces, the system reacts and ensures the change is compensated for
  • All data is recorded and evaluated on a PC as control unit during operation
  • Several air springs can be controlled separately
  • Potential problems are detected in real time and the system can be stopped before any damage occurs
  • Cause of the problem can be precisely determined from the recorded data, making maintenance and repairs easier, minimizing downtime and cost
