Comet Clutches 500 Series Torque Converter System

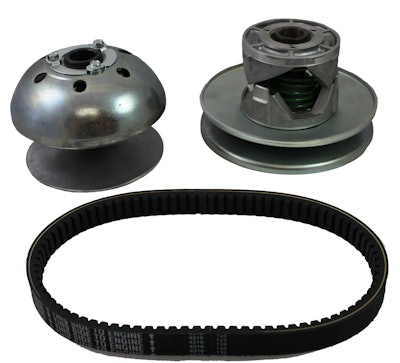

Comet 500 Series Photo 817
Comet logo 57a4c8f9cb5d5

The 500 Series torque converter system from Comet Clutches allows peak torque input and downshifts automatically to match load requirements.

  • Clutch changes the ratio between the drive and driven pulleys so that the engine can maintain its peak power output
  • Drive belt has 0.920 in. top width with symmetrical angles
  • Quiet dependable operation with field proven performance
  • OEM and aftermarket parts available
  • 7.5 in. driven - 0.81:1 high, 3:34:1 low ratio
  • 8.5 in. driven - 1.04:1 high, 3.76: 1 low ratio
  • 4 cycle-all engines up to 18 hp, 2 cycle 25 hp
  • Drive clutch bore series – available in 20 and 25 mm as well as 1 in.
  • Driven unit diameter – 7.5 in. dia., 0.75 in. with 1 in. bore,  or 8.5 in. dia. with 0.75 in. bore
  • Applications include walk behind and ride-on trowels, concrete buggies, material handling equipment, ATV’s and UTV’s
