Comet Clutches 44C Magnum Series Torque Converters

Img 2182 2
Comet logo 57a4c8f9cb5d5

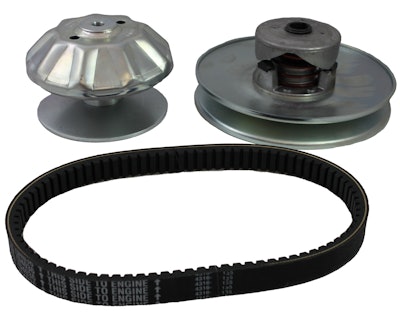

The 44C Magnum  continuously variable transmission (CVT) clutch from Comet Clutches is a torque sensitive drive system device that is infinitely variable from engagement to the highest speeds attainable (within the pitch diameter range).

  • Symmetrical clutch is designed to the withstand the extreme rigors of rough applications
  • By changing pucks and spring, the clutch can be converted from the standard 4 cycle setup to be used on 2 cycle engines
  • Recommended hp minimum 8 up to 18 hp for 4 cycle engines
  • Drive belt 7/8 in. top width, symmetrical type
  • OEM modifications possible to alter belt widths
  • Drive clutch bore sizes: 0.75 in., 1 in., 1-1/8 in.
  • 40D driven bore sizes: 5/8 in., 0.75 in., 7/8 in.
  • 44D driven bore sizes: 5/8 in., 0.75 in.
  • Speed reduction ratios using 40D, 7.5 in. diameter - 2.43:1 low, 1:1 high
  • Speed reduction ratios using 44D, 8.5 in. diameter - 2.83:1 low, 1.24:1 high
  • Applications include material handling, small excavators, compactors and brush cutters, ATVs and UTVs
