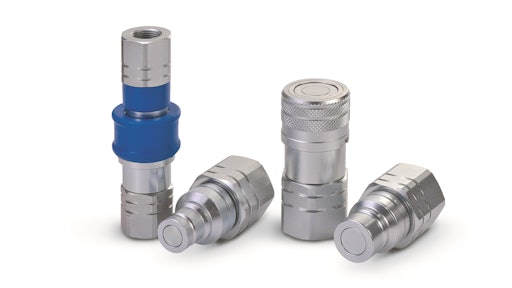

Power management company Eaton announces the release of its redesigned FF-Series Quick Disconnect Couplings to help mobile machine manufacturers meet market demand for high pressure and high impulse pressure solutions.
- Suitable for a wide variety of industries
- Applications include attachments for agricultural machinery, wheel loaders, excavators, bulldozers, commercial trailers, rail maintenance equipment, and forestry equipment
- Features enhanced flow rate of up to 40% and high performing pressure rate of up to 400 bar (5,801.51 psi)
- Carbon steel products are environmentally friendly
- Guardian Seal nickel-free plating solution offers corrosion resistance in tough environments for up to 1,000 hours
- Helps reduce pressure drops and decrease energy loss, resulting in lower fuel and energy consumption
- High flow rates, even on smaller sizes, offer more design flexibility as smaller size hoses can be used
- Exceeds ISO 16028 standards for working pressures by achieving 400 bar, for static, steady or non-pulsed applications, beyond the 250 bar (3,625.94 psi) standard
- Asserts burst pressure of 1,400 bar (20,305.28 psi) and 350 bar (5,076.32 psi) for ISO pressure rating for dynamic applications with moderate hydraulic shocks, again exceeding 250 bar defined in the standard
- Color-coded ends make it easy to connect couplings without mistakes, even in the field
- Offers connection under a pressure (CUP) alternative design male half coupling that connects up to 350 bar, releasing residual pressure with patented relief valve
