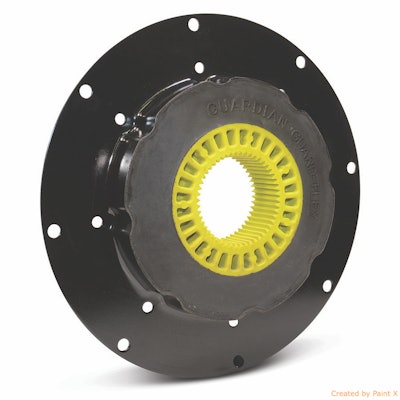

Altra Industrial Motion Guardian Couplings Guard-Flex Flywheel Coupling

Altra Industrial Motion's Guardian Couplings Guard-Flex Flywheel Coupling incorporates axial, radial and angular misalignment to help reduce forces to driven equipment.

Gc Guard Flex 11
Altra Industrial Motion Logo 5942da24dd834

The Altra Industrial Motion Guardian Couplings Guard-Flex Flywheel Coupling is a torsionally soft, vibration dampening coupling that has an in-shear design.

  • Offers protection to both engine and driven equipment when higher inertias are present
  • Acts as a mechanical fuse, in the event of an overload condition
  • Designed to fail through the rubber and shear
  • Three elastomers are available from stock to provide proper dampening and stiffness required for applications
  • Available in 45, 55, and 65 shore A durometers
  • Incorporates axial, radial and angular misalignment to help reduce forces to the driven equipment
  • Fits applications with SAE 7.5 through SAE 11.5 flywheel
  • Rated up to 82 hp (61.15 kW)
  • Applications include rotary screw compressors, centrifugal pumps, blowers, generators, and hydraulic pumps
