KTR BoWex-ELASTIC HE Flange Couplings

The BoWex-ELASTIC HE flange couplings are available in two larger sizes and offer high torsional flexibility consisting of circular elastomer.

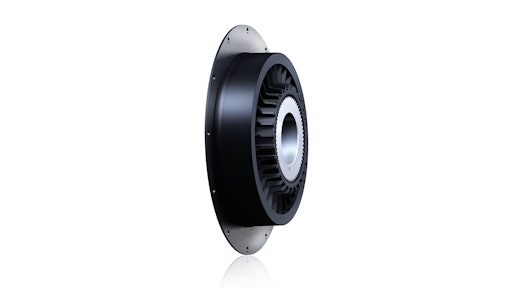

Bo Wex Elastic He White
Ktr Logo 11302716

KTR has increased the portfolio of the BoWex-ELASTIC HE flange coupling line to include two larger sizes, 240 HE and 275 HE.

  • High torsional flexibility consisting of circular elastomer
  • Rubber element is made of vulcanized natural rubber and stressed for torque-to-bore ratio
  • Reduces torsional vibrations occurring in drivetrain as well as cumulative forces
  • Can be adjusted to respective application for resonance-free operation due to different elastomer hardnesses
  • Plug-in coupling hub is designed according to BoWex curved-tooth gear principle and compensates for axial, radial and angular shaft displacements
  • Suitable for drives of up to 4,000 and 5,000 kW (5,364.1 and 6,705.1 hp), transmitting torques of up to 32,000 and 45,000 Nm (2,3602 and 3,3190.3 ft.-lbs.)
  • Possible application fields are gensets, pumps and compressors, as well as, high-performance stationary and mobile drive systems
