Max Jac IP69K Electric Linear Actuator

The Max Jac electric linear actuator from Thomson is durably constructed to survive in the harshest of operating environments and exposure to aggressive substances.

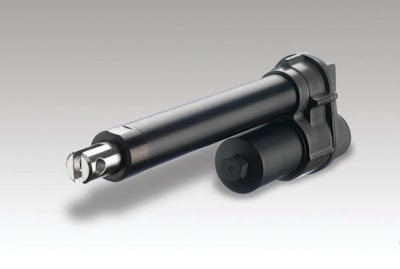

Tho594 Maxjac Actuator 1 Hires 11110883
Logo 10933216

Thomson introduces Max JacĀ - a heavy-duty linear actuator that delivers reliable and virtually maintenance-free operation while maintaining accuracy in the harshest application conditions.

  • IP69K rated
  • Features stainless steel adapter and extension tubes to help prevent leakage
  • Non-contact feedback signal assures accuracy over time and eliminates need for re-calibration
  • Withstands 500 hours of salt spray and exposure to aggressive substances such as fertilizers, acid, oil, grease and cleaning agents
  • Rigorously vibration tested
  • Provides continuous operation in extreme temperatures ranging from -40 to 85 C
  • Offers stroke lengths from 50 to 300 mm with a potential speed of 60mm/s
  • Can be custom designed to fit specific application needs
  • Comes with option of analogue or digital encoder output, as well as self-locking worm screw or ball screw models
