Hanbay R-Series Actuators

The R-Series Actuators from Hanbay provide up to 100 in.-lbs. of torque and include explosion-proof designations for use in hazardous environments.

March 10, 2016

R Series Actuator 56e197bdbe555

HANBAYLOGO 56e19556efab7

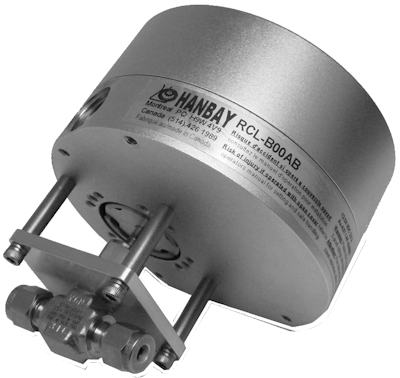

Hanbay Inc.'s R-Series Actuator is a tough and rugged electric valve actuator specified for precise flow control in hazardous locations.

Explosion-proof Class 1, Div 1, Groups B, C, D
Provides 100 in.-lbs. (11.3 Nm) of torque
Several control options available
Rotary and linear configurations
Compatible with all valves under 2 in. (0.03 m)

Fill out the form below to request more information about Hanbay R-Series Actuators
