MMP LA3-12V-5-A-SP-100 Rock Slide Linear Actuator

The MMP LA3-12V-5-A-SP-100 Linear Actuator features an all-steel drive pinion for increased force capacity while maintaining a 5:1 reduction ratio.

September 1, 2016

Midwest Motion Products Inc. (MMP)

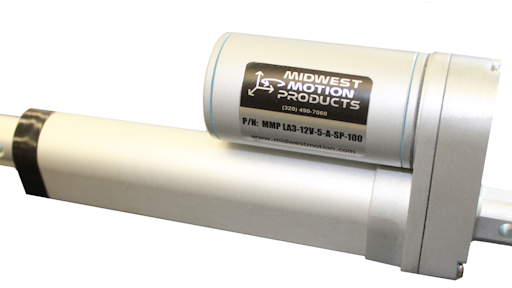

Mmp La3 12 V 5 A Sp 100 Photo

Midwest Motion Products Inc. announces the release of the MMP LA3-12V-5-A-SP-100 Linear Actuator.

Utilizes all-steel drive pinion, increasing force capacity while maintaining 5:1 reduction ratio to maintain rapid 2 in. (50.8 mm) per second stroke speed
Robust design
Maintains relatively low noise profile
Features IP65 protection rating to prevent ingress of moisture and other contaminants
Stroke length is 4 in. (101.6 mm) overall
Available with 2 in. (50.8 mm), 6 in. (152.4 mm), 8 in. (203.2 mm), 10 in. (254 mm) and 12 in. (304.8 mm) stroke lengths
Features 8 mm (0.3 in.) diameter clevis mounts on both ends, and built-in limit switches for both (full extend and full retract) ends of travel
Operating temperature range is –26-65 C (-14.8-149 F)
Acme screw drive allows for 517 lbs. (234.5 kg) of static load, while boasting 45 lb. (20.4 kg) dynamic load rating
Input Voltage 12 VDC
Load Capacity (Force) 45 (200) Lbs. (N)
Static Load 517 (2300) Lbs. (N)
Stroke Length 4 (100) IN (mm)
