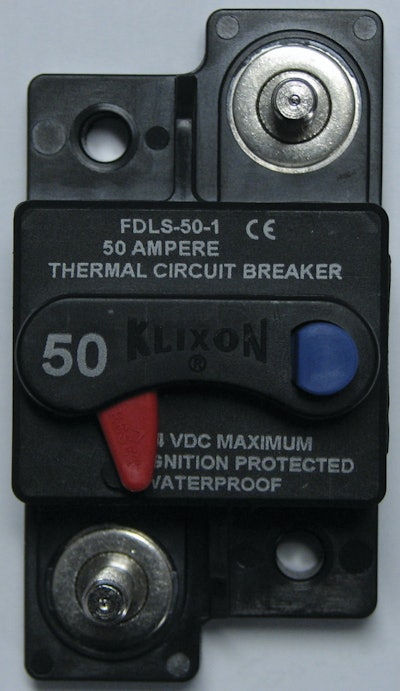

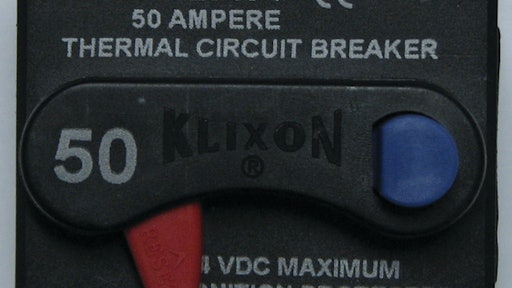

Sensata Technologies Inc. introduces its series FDLS switchable thermal circuit breakers for the truck, bus, specialty vehicle, electric vehicle and marine markets.
- Features vibration resistance
- Available in a surface mount version with switchable manual reset
- Weatherproof and ignition protected design provides durability
- Includes Klixon trip-free design
- Strong housing material provides increased robustness and ability to accommodate heavy gauge wire lugs across terminal studs
- Offers 35 to 150 amps at 30V DC power range
- Meets 5000 amps at 12V DC for interrupt capacitry per ABYC E-11 DC electrical systems
- Complies with SAE J1625 and SAE J1171 standards
