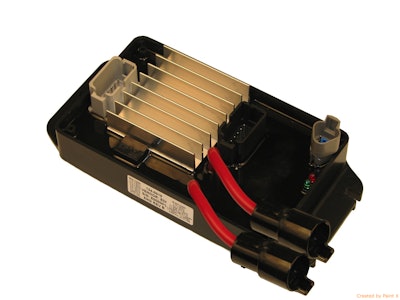

Trombetta 200A J1939 Output Module

The Trombetta 200A J1939 Output Module is a 10 channel PWM output module designed to be a cost effective solution for extreme-duty applications.

• Each PWM output has independent control of frequency and duty cycle
• Meets needs of wide range of applications
• Each output is rated to 25.5A with a total device current of 200A
• Includes reverse battery, voltage transient, short circuit and overload protection
• Operating voltage is 8-32V DC
• Features potted protection for use in harsh environments
• Operating temperature range of -40-85 C (-40-185 F)
• IP67 rated
