Proterra H Series Battery Packs for Commercial Vehicles

The H Series battery packs can support different vehicle voltages up to 1,200V DC and 6 MWh in size.

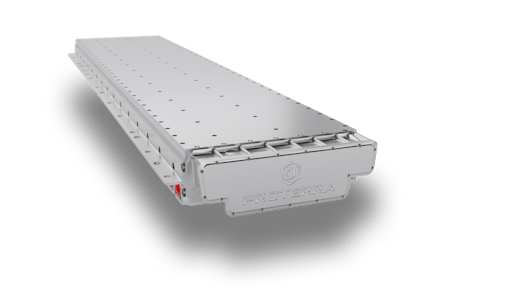

H Series Pack
ProterraLogo

Proterra introduces the H Series of battery packs, offering a customizable energy storage system to power a wide range of heavy-duty commercial vehicles.

  • Narrower design for packaging into standard truck frame rails
  • Offers increased packaging flexibility for Proterra Powered customers
  • Highly customizable, enabling a vehicle’s energy storage system to be comprised of multiple packs
  • Width of 620 mm (24.4 in.)
  • Holds 25-75 kWh of energy storage capacity
  • Ruggedized commercial grade housing withstands harsh environments
  • Features uniquely sized module which can be produced at four different voltage ratings, offering flexibility to vary voltage and energy requirements to meet application needs
  • Utilizes NCM 811 lithium-ion cylindrical cells
  • Scalable in all dimensions and can support different vehicle voltages up to 1,200V DC and 6 MWh in size
  • Includes patented passive and active safety features and liquid thermal conditioning
  • Meets safety standards, including ISO 26262 (up to ASIL C)
  • Passive Propagation Resistance (PPR) isolates thermal events if there is latent cell failure to prevent spreading to neighboring battery cells

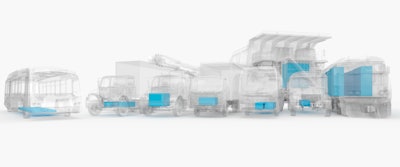

Battery Technology
