Sensorex SX41200 and SX41400 Series Gravity Referenced Closed-Loop Servo Inclinometers/Accelerometers

Meggitt Sensing Systems introduces its Sensorex SX41200 and SX41400 Series gravity referenced closed-loop servo inclinometers/accelerometers for use in harsh environments.

Meggittsensingsystems Sensorex 10755776

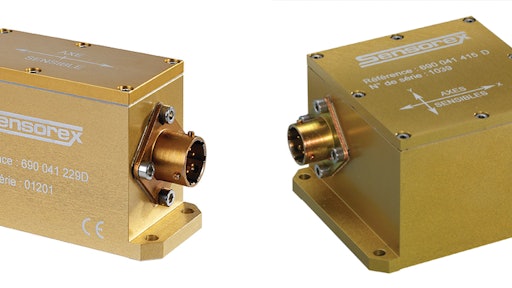

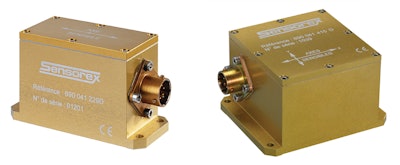

Meggitt Sensing Systems introduces its Sensorex SX41200 and SX41400 Series gravity referenced closed-loop servo inclinometers/accelerometers, designed to provide high-reliability tilt or acceleration measurements within harsh environments, and particularly, those characterized by high shock and vibration inputs.

  • Available in 12 individual models per series
  • Features angular measurement ranges from ±3 to ±90 degrees
  • Offers choice of single axis (SX41200) or twin axis (SX41400) version
  • Rugged design incorporates galvanometric pendulum sensing element with hydromechanical damping, combined with an optical position sensor
  • Provides 4-20 mA or ±5 VDC (±5%) output proportional to sine of the angle of tilt
  • Inertial sensing elements are contained within rugged, watertight IP65 sealed aluminum housings for added durability
  • Single, unregulated voltage supply provides powered
  • Features bidirectional output
  • Additional options include a ±0.02% non-linearity error specification (excluding ±90 degree range), special bandwidth, zero offset (unipolar output) and special range and output signals
  • All models conform to both European EMC and railway testing standards
