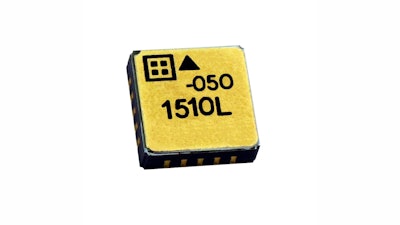

Silicon Designs Inc. announces the global market introduction of its Model 1510 Series analog surface mount (LCC) MEMS variable capacitive accelerometers.
- Provides reliable general purpose vibration measurements at OEM volumes
- Features long-term stability across a variety of aerospace, automotive, energy, industrial, oil & gas, and test and measurement applications
- Incorporates micromachined variable capacitive sensing element and custom integrated circuit
- Produces two analog voltages which vary proportionately according to measured acceleration levels
- Series units respond to either AC or DC acceleration, with choice of either 4V differential or 0.5 to 4.5V single ended output
- Both outputs read nominally at 2.5V (at zero acceleration)
- Nitrogen damped and hermetically sealed
- Two reference voltages, 5.0 and 2.5V (nominal), are required
- Output scale factor is ratiometric to the 5V DC 6 mA (typical) reference voltage
- Sensitive axis is perpendicular to the bottom of the LCC package
- RoHS compliant
- Can reliably operate over a standard temperature range of -40 to 85 C
- Insensitive to temperature changes and gradients
- Signal output is unaffected by electromagnetic interference, and requires no warm-up period
- Series units are available in standard measurement ranges from ±5 g to ±100 g, with corresponding nominal frequency response from 0 to 600 Hz (±5 g) to 0 to 2500 Hz (±100 g)
