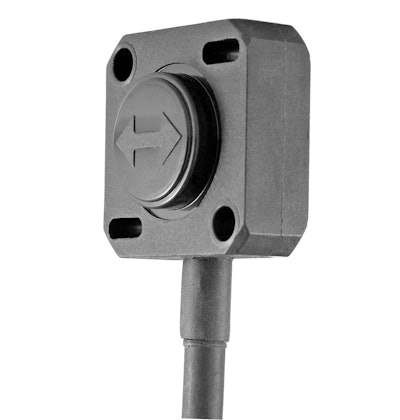

DIS Sensors QG Series Accelerometers

DIS Sensors' QG Series accelerometers measure acceleration in one, two or three axes and feature IP67 sealing for use in harsh operating environments.

Accelero v3 57dc4a2308662
Logo DIS 57dc3efac27ac

DIS Sensors' QG Series of acceleration sensors are based on robust MEMS technology in which capacitance differences can be converted into an analogue voltage within a micro-mechanical sensor chip.

  • Measures acceleration in one, two or three axes
  • Analog voltage is proportional to acceleration at which sensor is exposed
  • Modular design makes it easy to adapt to specific requirements
  • Housing is available in metal (aluminium and stainless steel), as well as in plastic
  • Measurement ranges from ±0.26 g to ±18 g (1 g = 9.81 m/s²)
  • Frequency is 0 to 10/50/100/500/1.000/2.000 Hz
  • Complies with Functional Safety SIL2/PLd (optional)
  •  Energy supply is 5V DC or 10-30V DC
  • Analogue output is 0.5-4.5V or 4-20 mA
  • Digital output is CANopen (Safety)
  • Offers accuracy up to 0.003 g depending on model and range
  • Includes IP67 (optional IP68 or IP69K) protection
  • Zeroing possibility depends on model
